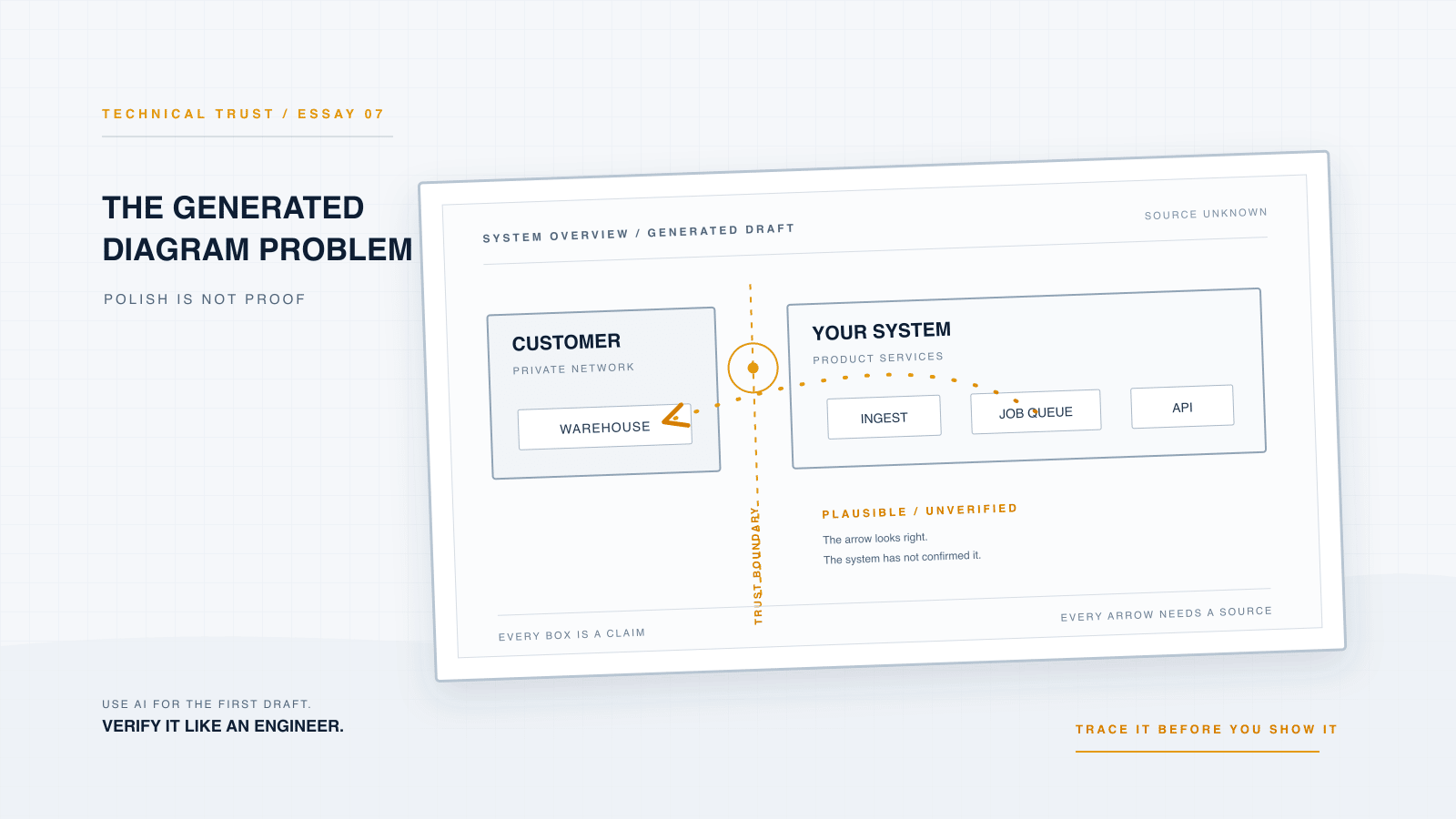

You need an architecture diagram for tomorrow's technical review.
You open Claude. You describe the customer's environment, your product's components, and the data flows you want to show. Thirty seconds later, you have your nifty diagram.
It's clean. The boxes are aligned. The arrows are labeled. The color scheme matches your brand deck. It looks like something a senior architect spent a day on.
You drop it into the slides. You present it.
The customer's lead engineer leans forward, squints at the arrow between the ingestion service and their data warehouse, and asks: "Wait, is this push or pull? Because we don't allow inbound connections from that network."
You don't know the answer. You open the diagram again and realize you never checked.
The Temptation
The GenAI output looks pretty great! But, a diagram that looks finished feels finished. Clean lines and tidy labels signal competence, and your brain reads that signal as correctness.
The temptation is to review the diagram for how it looks instead of what it communicates.
Does it look professional? Yes. Does it look like our product? Mostly. Does it look right? It seems right.
But every arrow is a says something. Every box is a claim about what exists. Every label describes how it behaves.
And the AI model never checked any of them against your system.
The Trap
Here’s what generated diagrams get wrong, and why it’s hard to see:
They invent plausible components. Your product has a sync service, a job queue, and a reporting API. The diagram shows a cache layer that doesn’t exist, because caches are what architectures usually have.
They get the direction wrong. A pull becomes a push. A batch job becomes a stream. The arrow looks reasonable, so nobody questions it.
They drop the boundaries. The diagram puts the customer’s data inside your system, when it actually stays in their VPC and you only see metadata. Nothing on the page says so.
They skip the failure path. The happy path is drawn beautifully. What happens when the queue backs up or the API times out is not drawn at all, because the model only draws what it was asked to draw.
None of these errors look like errors. They look like good architecture.
That’s the trap.
The more polished the diagram, the less likely anyone reviews it closely. And the people most likely to spot the error are the customer’s engineers, the ones whose trust you most need.
The Asymmetry
You think: “It’s a good-looking diagram of a system.” Your customer’s engineer thinks: “This vendor is drawing a system they haven’t verified against their own product.”
The Bold Fix
Treat every generated diagram as a set of claims to verify, not an image to approve.
Before a diagram goes in front of a customer, run it through a short check:
- Trace every box. Can you point to the code, the spec, or the config where this component exists? If not, it’s invented until proven otherwise.
- Trace every arrow. For each connection: what’s the direction, the protocol, and whether it’s sync or async? Confirm it against the integration docs, not memory.
- Mark the boundaries. Where does the customer’s data live? Where does yours? Which network does each component sit in? Draw the lines explicitly.
- Draw one failure path. Pick the most likely failure and show what happens. If you can’t, you don’t understand the system well enough to present it yet.
- Label the source. Write “Verified against [doc/version]” in the footer. If you can’t write it, don’t present it.
This takes twenty minutes. It saves the meeting.
The Anatomy
There are three error types that generated diagrams produce most often:
- Invented Components
The diagram contains something your product doesn’t have. A cache, a message broker, a microservice that exists in a competitor’s stack or a blog post, not yours.
Check: Does this component appear in our architecture docs or codebase? If not, remove it or label it as a proposed addition.
- Wrong Flow
The direction, protocol, or timing is off. Push vs. pull. Sync vs. async. Real-time vs. nightly batch. These errors matter most to security and operations teams, because they change what can go wrong.
Check: For each arrow, name the initiator, the protocol, and the trigger. If you can’t name all three, you don’t have a verified arrow.
- Missing Boundaries
The diagram doesn’t show where data lives, who owns it, or which network it crosses. For a customer with compliance requirements, this is the error that ends the conversation.
Check: Draw the trust boundary on the diagram itself. If the customer’s data crosses it, say so explicitly. If it doesn’t, say that too.
The Counterintuitive Inversion
The more a diagram looks like it came from a senior architect, the more carefully the customer will read it.
That’s the paradox. Polish raises expectations. A diagram that looks finished invites scrutiny on exactly the points you didn’t check.
A rougher diagram, with a footer that says “Verified against v4.2 integration docs, reviewed Oct 14,” earns more trust than a beautiful one with no source line.
Customers don’t reward polish. They reward the sense that you know which parts are solid.
Three Bold Contexts
Context 1: The Trusting SE
Generates a diagram in thirty seconds. Scans it, says it looks right, and presents it. Customer’s engineer spots a pull that should be a push. The meeting turns into a correction session. Trust drops before the demo starts.
Context 2: The Verified SE
Generates the diagram. Spends twenty minutes tracing every box and arrow against the docs. Removes one invented component. Adds a trust boundary. Presents it with a source line. Customer’s engineer asks a deeper question about failure handling, and the SE has the answer. Customer thinks, “They actually know their system.”
Context 3: The Overcorrecting SE
Distrusts AI so completely that they redraw everything by hand, late at night, before every call. The diagrams are accurate but slow to produce, and the SE never has time to tailor them. Customer gets a correct, generic diagram that doesn’t address their constraints.
The goal is Context 2. Use AI for the first draft. Verify it like an engineer. Show the source.
Pattern to Remember
The Generated Diagram Problem:
AI produces diagrams that look authoritative because they’re visually polished, not because they’re accurate. Every box, arrow, and boundary is a claim about your system. Those claims need verification before a customer sees them, because the customer’s engineers will check the ones you didn’t.
The fix:
Trace every box to a source. Trace every arrow to a protocol and direction. Draw the trust boundaries. Show one failure path. Label what you verified. The diagram is only as trustworthy as the checking behind it.
Hit reply and tell me: What’s the most convincing wrong detail you’ve seen in a diagram, and who caught it?
